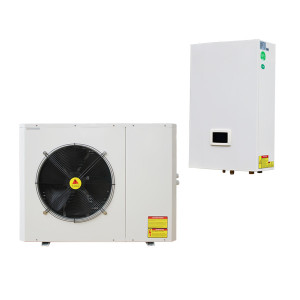

12kW 230V EVI split heat pump

12kW 230V EVI split heat pump

12kW 230V EVI split heat pump
CategoriesEVI Heat Pump
AlbumView larger image
BrandSuoher/OEM
ModelSHAW-12EVIS1
FOB portRongqi, Shunde
Terms of PaymentL/C, T/T
Update Time2019-01-17
Detail Information

Product Detail


1.      Heating and hot water modes.

2.      Heating capacity 10kw, 12kw, 16kw, 18kw, 25kw, 34kw.

3.      Work at down to -25DegC.

4.      Electronic expansion valve for main circuit and EVI circuit.

5.      Receives ON/OFF signal from thermostat, master controller, smart grilletc to save more energy.

6.      Heating curves for more comfortable temperature and more energy-saving.

7.      Split type.

8.      Copeland scroll EVI compressor.

9.      With compressor heater.

10.  With bottom plate heater.

11.  With 3kw back-up electric heater.

12.  With energy class A circulating pump.

13.  With control for 3-way valve to switch between heating circuit and hotwater circuit.

14.  With water flow switch.

15.  We offer OEM service including back-up heater, circulating pump, casingdesign, painting color etc.

Model



SHAW-12EVIS1

SHAW-12EVIS3

SHAW-17EVIS3

Power Supply

V/ph/Hz

220~240/1/50

380~400/3/50

380~400/3/50

Heating Capacity (1)

KW

11.8

11.8

17

Heating Power Input (1)

KW

3.1

3.1

3.7

Heating Capacity (2)

KW

11.7

11.7

16.5

Heating Power Input (2)

KW

3.3

3.3

4.15

Heating Capacity (3)

KW

7.3

7.3

11

Heating Power Input (3)

KW

3

3

4.38

Heating Capacity (4)

KW

7.6

7.6

11.5

Heating Power Input (4)

KW

3.4

3.4

4.79

Heating Start Current

A

68

21

41

Heating Running Current

A

13.4

5.2

7.7

Workable Ambient Temp.

-25~35

-25~35

-25~35

Maximum Water Outlet Temp.

55

55

55

Compressor



Copeland EVI

Copeland EVI

Copeland EVI

Compressor Quantity

pc

1

1

1

Refrigerant



R407C

R407C

R407C

Condenser



Plate type

Plate type

Plate type

Water Flow Volume

m3/h

2.0

2.0

2.9

Built-in Circulation Pump



Built-in

Built-in

Built-in

Water flow switch



Built-in

Built-in

Built-in

Water Pressure Drop

KPa

10

10

10

Water Connection



1-1/4"F

1-1/4"F

1-1/4"F

Assistant circuit heat exchanger



Plate type

Plate type

Plate type

Main circuit throttling device



EEV

EEV

EEV

Assistant circuit throtting device



EEV

EEV

EEV

Net Dimension(D*W*H)

mm

1140*510*1150(outdoor) 290*435*740(indoor)

1140*510*1150(outdoor) 290*435*740(indoor)

920*600*1590(outdoor) 290*435*740(indoor)

Net Weight

kg

144(outdoor) 30(indoor)

144(outdoor) 30(indoor)

202(outdoor) 34(indoor)

Noise Level

dB(A)

55(outdoor) 29(indoor)

55(outdoor) 29(indoor)

55(outdoor) 29(indoor)

Test Condition:
(1) A7/W35: Ambient Temp. DB/WB 7/6
, Hot water inlet/outlet Temp. 30/35.
(2) A7/W45: Ambient Temp. DB/WB 7/6
, Hot water inlet/outlet Temp. 40/45.
(3) A-15/W35: Ambient Temp. DB/WB -15/-
, Hot water inlet/outlet Temp. -/35.
(4) A-15/W45: Ambient Temp. DB/WB -15/-
, Hot water inlet/outlet Temp. -/45.
