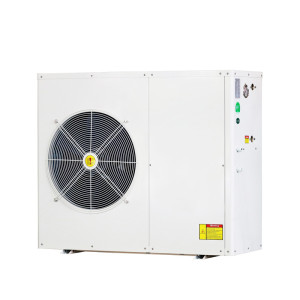

9.5kW Air to water heat pumps for house heating and hot water
9.5kW Air to water heat pumps for house heating and hot water
| Categories | House Heating + Hot Water Heat Pump |
|---|---|
| Album | View larger image |
| Brand | Suoher/OEM |
| Model | SHAW-09FM1 |
| FOB port | Rongqi, Shunde |
| Terms of Payment | L/C, T/T |
| Update Time | 2019-01-17 |
Product Detail
1. Airto water heat pumps for house heating and hot water.
2. 3modes: heating only, heating and hot water, hot water only.
3. Withcontrol for 3-way valve to switch between heating circuit and hot watercircuit.
4. LCDcontroller with heating curves.
5. ReceivesON/OFF signal from room thermostat, master controller and smart grill, to savemore energy.
6. R410arefrigerant with Copeland scroll compressors.
7. Electronicexpansion valve.
8. Lownoise design, with compressor noise jacket, compressor noise cover, and lownoise fans.
9. Withcontrol for back-up electric heater.
10. Crankcaseheater for compressor.
11. Heaterfor bottom plate.
12. Weoffer OEM services including controller functions, 3-way valve, electricheater, circulating pump, casing design, painting color etc.
Model | | SHAW-09FM1 | SHAW-12FM1 | SHAW-12FM3 |
Power Supply | V/Ph/Hz | 220V/1/50HZ | 220V/1/50HZ | 380V/3/50HZ |
Heating Capacity (A7/W35) | KW | 9.57 | 12.32 | 12.32 |
Power Input (A7/W35) | KW | 2.39 | 3.11 | 3.11 |
COP(A7/W35) | | 4.00 | 3.90 | 3.90 |
Heating Capacity (A7/W45) | KW | 9.33 | 12.02 | 12.02 |
Power Input (A7/W45) | KW | 2.78 | 3.47 | 3.47 |
COP(A7/W45) | | 3.35 | 3.46 | 3.46 |
Heating Capacity (A7/W55) | KW | 9.02 | 11.44 | 11.44 |
Power Input (A7/W55) | KW | 3.45 | 4.22 | 4.22 |
COP(A7/W55) | | 2.61 | 2.71 | 2.71 |
Heating Capacity (A2/W35) | KW | 8.46 | 10.49 | 10.49 |
Power Input (A2/W35) | KW | 2.33 | 2.98 | 2.98 |
COP(A2/W35) | | 3.63 | 3.52 | 3.52 |
Heating Capacity (A-7/W35) | KW | 6.1 | 7.8 | 7.8 |
Power Input (A-7/W35) | KW | 2.32 | 3.25 | 3.25 |
COP(A-7/W35) | | 2.6 | 2.4 | 2.4 |
Heating Capacity (A-7/W55) | KW | 6 | 7.6 | 7.6 |
Power Input (A-7/W55) | KW | 3.41 | 4.47 | 4.47 |
COP(A-7/W55) | | 1.75 | 1.7 | 1.7 |
Heating Capacity (A20/W15~55) | KW | 11.2 | 14.8 | 14.8 |
Power Input (A20/W15~55) | KW | 2.67 | 3.6 | 3.6 |
COP(A20/W15~55) | | 4.2 | 4.11 | 4.11 |
Compressor | | Rotary | COPELAND Scroll | COPELAND Scroll |
Refrigerant | | R410A | R410A | R410A |
Condenser | | tube-in-shell | tube-in-shell | tube-in-shell |
Evaporator | | Hydrophilic fin-tube | Hydrophilic fin-tube | Hydrophilic fin-tube |
Evaporator size | | double-row | double-row | double-row |
Throttling device | | EEV | EEV | EEV |
Max. Water Outlet Temp. | DegC | 55 | 55 | 55 |
Water Connection | mm | DN25 | DN25 | DN25 |
Fan Quantity | | 1 | 1 | 1 |
Modular Control | | Yes | Yes | Yes |
Noice | dBA | ≤48 | ≤50 | ≤55 |
Net weight | Kg | 115 | 120 | 120 |
Net Dimension | H×W×D mm | 1120*430*950 | 1120*430*950 | 1120*430*950 |
