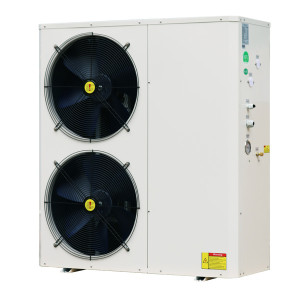

15kW 380V House heating hot water heat pump

15kW 380V House heating hot water heat pump

15kW 380V House heating hot water heat pump
CategoriesHouse Heating + Hot Water Heat Pump
AlbumView larger image
BrandSuoher/OEM
ModelSHAW-15FM3
FOB portRongqi, Shunde
Terms of PaymentL/C, T/T
Update Time2019-03-26
Detail Information

1.    Air to water heat pumps for house heating and hot water.

2.    3 modes: heating only, heating and hot water, hot water only.

3.    With control for 3-way valve to switch between heating circuit and hot watercircuit.

4.    LCD controller with heating curves.

5.    Receives ON/OFF signal from room thermostat, master controller and smart grill, to savemore energy.

6.    R410 arefrigerant with Copeland scroll compressors.

7.    Electronic expansion valve.

8.    Low noise design, with compressor noise jacket, compressor noise cover, and lownoise fans.

9.    With control for back-up electric heater.

10.  Crankcase heater for compressor.

11.  Heater for bottom plate.

12.  We offer OEM services including controller functions, 3-way valve, electricheater, circulating pump, casing design, painting color etc.

Model



SHAW-15FM3

SHAW-18FM3

SHAW-21FM3

Power Supply

V/Ph/Hz

380V/3/50HZ

380V/3/50HZ

380V/3/50HZ

Heating Capacity (A7/W35)

KW

14.58

18.47

21.48

Power Input (A7/W35)

KW

3.79

4.80

6.1

COP(A7/W35)



3.84

3.85

3.52

Heating Capacity (A7/W45)

KW

14.38

17.82

20.73

Power Input (A7/W45)

KW

4.13

5.02

6.23

COP(A7/W45)



3.48

3.55

3.33

Heating Capacity (A7/W55)

KW

14.13

17.36

20.17

Power Input (A7/W55)

KW

5.01

6.72

7.78

COP(A7/W55)



2.82

2.58

2.59

Heating Capacity (A2/W35)

KW

13.13

17.12

19.86

Power Input (A2/W35)

KW

3.72

4.67

5.82

COP(A2/W35)



3.53

3.67

3.41

Heating Capacity (A-7/W35)

KW

9.8

12.87

14.4

Power Input (A-7/W35)

KW

3.92

4.87

6

COP(A-7/W35)



2.5

2.64

2.4

Heating Capacity (A-7/W55)

KW

9.5

12.54

14.2

Power Input (A-7/W55)

KW

5.49

6.7

8.35

COP(A-7/W55)



1.73

1.87

1.7

Heating Capacity (A20/W15~55)

KW

18.6

23.3

27

Power Input (A20/W15~55)

KW

4.85

5.71

6.65

COP(A20/W15~55)



3.84

4.08

4.06

Compressor



COPELAND Scroll

COPELAND Scroll

COPELAND Scroll

Refrigerant



R410A

R410A

R410A

Condenser



tube-in-shell

plate type

plate type

Evaporator



Hydrophilic fin-tube

Hydrophilic fin-tube

Hydrophilic fin-tube

Evaporator size



double-row

double-row

double-row

Throttling device



EEV

EEV

EEV

Max. Water Outlet Temp.

DegC

55

55

55

Water Connection

mm

DN25

DN25

DN25

Fan Quantity



1

1

2

Modular Control



Yes

Yes

Yes

Noice

dBA

≤57

≤57

≤57

 Net weight

Kg

130

142

162

Net Dimension

H×W×D                 mm

810x810x1186

810x810x1186

810x810x1186
