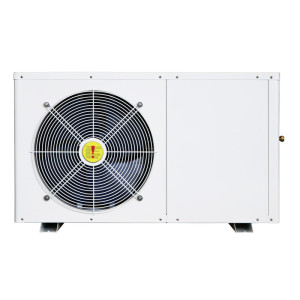

5kw Family Residential Hot Water Heat Pump R410A 57DegC hot water

Categories

5kw Family Residential Hot Water Heat Pump R410A 57DegC hot water

Categories	Residential Hot Water Heat Pump
Album	View larger image
Brand	Suoher/OEM
Model	SHHW-5FM1
Type	Heat Pump
Place of Origin	China (Mainland)
Brand Name	suoher
FOB port	Rongqi
Terms of Payment	L/C, T/T
Update Time	2020-04-03

Detail Information

Product Detail

1. Built-in circulating pump.

2. R410A refrigerant.

3. Electronic expansion valve.

4. Works as the back-up heater for solar heater. Receives on/off signalfrom solar controller, room thermostat, master controller etc.

5. Max. hot water temperature 57DegC.

6. Tube-in-shell heat exchanger.

7. LCD controller with timer function, control output for back-up electricheater.

8. OEM service for different circulating pump, water flow switch, controllerfunction etc.

Model			SHHW-3.7FM1	SHHW-5FM1	SHHW-7FM1
Rated Heating Capacity*		W	3681	4840	6809
Rated Input Power*		W	920	1240	1700
Rated Input Current*		A	4.08	5.76	7.30
COP*			4.0	3.9	4.0
Rated Heating Capacity**		W	3100	4100	5860
Rated Input Power**		W	800	1070	1500
Rated Input Current**		A	3.5	4.8	6.8
COP**			3.88	3.83	3.91
Power Supply		V/ph/Hz	220/1/50	220/1/50	220/1/50
Refrigerant			R410a	R410a	R410a
Compressor			Rotary	Rotary	Rotary
Condenser			Tube-in-shell	Tube-in-shell	Tube-in-shell
Throttling Device			Electronic expansion valve	Electronic expansion valve	Electronic expansion valve
Rated Hot Water Temperature		°C	55	55	55
Maximum Hot Water Temperature		°C	57	57	57
Hot Water Outpump Speed		L/H	80	120	150
Circulation Pump			built-in	built-in	built-in
Water Pump Head		m	6	6	6
Water Connection			DN20	DN20	DN20
Noise		dBA	≤48	≤50	≤50
Weight	Net weight	KG	40	45	63
Weight	Gross weight	KG	45	50	68
Net Dimension (L* W *H)		MM	780×320×504	936×360×550	936×360×550
Packing Dimension (L* W *H)		MM	850×410×620	1010×410×670	1010×390×670
Measuring Condition: Ambient Temp.: Dry Bulb 20DegC, Wet Bulb 15DegC. Water Inlet/Outlet Temp.: Inlet Temp. 15DegC, Outlet Temp. 55DegC. *EN14511 A7/W35: Dry Bulb 7DegC, Wet Bulb 6DegC. Water Inlet/Outlet Temp.: Inlet Temp. 30DegC, Outlet Temp. 35DegC Note: The measuring conditoin contains the power input of the built-in circulation pump.
