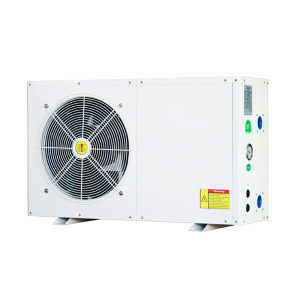

9.5kw, 12.5kw swimming pool heat pump

9.5kw, 12.5kw swimming pool heat pump

9.5kw, 12.5kw swimming pool heat pump
9.5kw, 12.5kw swimming pool heat pump9.5kw, 12.5kw swimming pool heat pump
CategoriesSwimming Pool Heat Pump
AlbumView larger image
BrandSuoher/OEM
ModelSHPH-9.5FM1, SHPH-12.5FM1
FOB portRongqi, Shunde
Terms of PaymentL/C, T/T
Update Time2019-07-16
Detail Information

1.      Electronic expansion valve.

2.      R410A refrigerant.

3.      Operating ambient temperature range -5~45DegC.

4.      Longer titanium coils inside the condenser, higher COP.

5.      Low noise fans, durable fan blades.

6.      With heat insulation for titanium heat exchanger.

7.      Built-in water flow switch.

8.      LCD controller with simple operation.

9.      OEM/ODM design.

Model





SHPH-9.5FM1

SHPH-12.5FM1

Power Supply



V/Ph/Hz

220~240/1/50

220~240/1/50

Heating Capacity

A24°C/W26°C

kW

9.5

12.5

Input Capacity

kW

1.83

2.55

Input Current

A

8.3

11.60

COP

w/w

5.2

4.9

Heating Capacity

A15°C/W26°C

kW

7.8

10.0

Input Capacity

kW

1.81

2.40

Input Current

A

8.2

10.90

COP

w/w

4.3

4.2

Heating Capacity

A7°C/W26°C

kW

6

7.5

Input Capacity

kW

1.76

2.08

Input Current

A

8.2

9.50

COP

w/w

3.4

3.6

Cooling Capacity

A35°C/W29°C

kW

5.2

6.8

Input Capacity

kW

1.86

2.63

Input Current

A

8.5

12.70

EER

w/w

2.8

2.6

Max Heating Input



kW

2.2

3.00

Max Heating Current



A

10

13.00

Max Cooling Input



kW

2.42

3.30

Max Cooling Current



A

11

15.00

Controller





LCD

LCD

Compressor quantity





1

1

Compressor





Rotary

Rotary

Refrigerant





R410a

R410a

Fan quantity



QTY

1

1

Input Power of Fan



W

98

122

Fan Speed



RPM

890

830

Evaporator size





Double-row

Double-row

Noise (1m distance)



dB(A)

52

53

Condenser





Titanium in PVC

Titanium in PVC

Water Connection



mm

DN40

DN40

Water Flow Rate



m³/h

4

5.4

Water Pressure Drop



kpa

14

14

Net Dimension

Length

mm

1010

1010

Wide

mm

370

370

Height

mm

615

615

Packing Dimension

Length

mm

1150

1150

Wide

mm

400

400

Height

mm

740

740

Weight

Net

kg

63

75

Gross

kg

76

90
