Home > Products > Swimming Pool Heat Pump >

45kw swimming pool heat pump

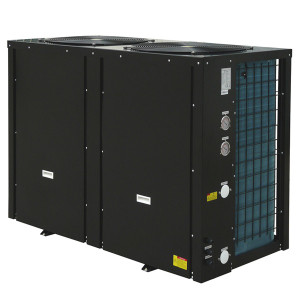

45kw swimming pool heat pump

45kw swimming pool heat pump
CategoriesSwimming Pool Heat Pump
AlbumView larger image
BrandSuoher/OEM
ModelSHPH-45FM3
FOB portRongqi, Shunde
Terms of PaymentL/C, T/T
Update Time2019-05-26
Detail Information

1.      Electronic expansion valve.

2.      R410A refrigerant.

3.      Operating ambient temperature range -5~45DegC.

4.      Longer titanium coils inside the condenser, higher COP.

5.      Low noise fans, durable fan blades.

6.      With heat insulation for titanium heat exchanger.

7.      Built-in water flow switch.

8.      LCD controller with simple operation.

9.      OEM/ODM design.

Model





SHPH-45FM3

Power Supply



V/Ph/Hz

380~400/3/50

Heating Capacity

A24°C/W26°C

kW

45.0

Input Capacity

kW

8.20

Input Current

A

13.60

COP

w/w

5.5

Heating Capacity

A15°C/W26°C

kW

38.5

Input Capacity

kW

8.00

Input Current

A

13.20

COP

w/w

4.8

Heating Capacity

A7°C/W26°C

kW

29.4

Input Capacity

kW

7.74

Input Current

A

12.80

COP

w/w

3.8

Cooling Capacity

A35°C/W29°C

kW

29.0

Input Capacity

kW

9.35

Input Current

A

15.50

EER

w/w

3.1

Max Heating Input



kW

9.40

Max Heating Current



A

15.50

Max Cooling Input



kW

10.80

Max Cooling Current



A

17.80

Controller





LCD

Compressor quantity





2

Compressor





Scroll

Refrigerant





R410a

Fan quantity



QTY

2

Input Power of Fan



W

200*2

Fan Speed



RPM

830

Evaporator size





Double-row

Noise (1m distance)



dB(A)

68

Condenser





Titanium in PVC

Water Connection



mm

DN50

Water Flow Rate



m³/h

19

Water Pressure Drop



kpa

18

Net Dimension

Length

mm

1450

Wide

mm

705

Height

mm

1065

Packing Dimension

Length

mm

1550

Wide

mm

800

Height

mm

1200

Weight

Net

kg

270

Gross

kg

300
