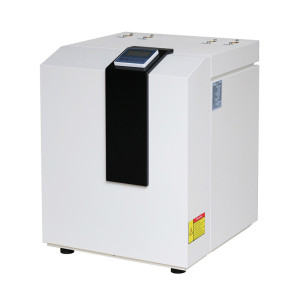

6KW, 9KW, 10KW Geothermal/ground source heat pumps
| Categories | Geothermal Heat Pump |
|---|---|
| Brand | Suoher/OEM |
| Model | SHWW-6/9/10FM1 |
| FOB port | Rongqi, Shunde |
| Terms of Payment | L/C, T/T |
| Update Time | 2021-11-29 |
1. Newdesign, new visible screws outside.
2. Heatingonly or heating/cooling.
3. Allcasing panels are easy to remove for maintenance.
4. Lownoise design, the compressor system is isolated from bottom plate with softrubber mounts.
5. Noisejacket for compressor.
6. Pinvalve is easily accessible for maintenance.
7. Withwater flow switch.
8. Withdrain pipes for heat exchangers.
9. Tube-in-shellheat exchangers for heating only units and plate heat exchangers forheating/cooling units.
10. Canwork with room thermostat, master controller, or smart grill signal.
11. Built-inEnergy Class A circulating pump as standard.
12. Weoffer OEM/ODM service.
Model | SHWW-6FM1 | SHWW-9FM1 | SHWW-10FM1 | |
Heating capacity W10/W35 (1) | KW | 6.40 | 9.10 | 10.20 |
Heating power input W10/W35 | KW | 1.37 | 1.94 | 2.18 |
COP W10/W35 | | 4.67 | 4.69 | 4.68 |
Heating capacity W10/W55 (2) | KW | 5.70 | 8.10 | 9.08 |
Heating power input W10/W55 | KW | 1.81 | 2.56 | 2.88 |
COP W10/W55 | | 3.15 | 3.16 | 3.15 |
Heating capacity B0/W35 (3) | KW | 5.95 | 8.46 | 9.49 |
Heating power input B0/W35 | KW | 1.38 | 1.96 | 2.20 |
COP B0/W35 | | 4.30 | 4.32 | 4.31 |
Heating capacity B0/W55 (4) | KW | 4.99 | 7.10 | 7.96 |
Heating power input B0/W55 | KW | 1.99 | 2.81 | 3.16 |
COP B0/W55 | | 2.51 | 2.52 | 2.52 |
Heating capacity B-5/W45 (5) | KW | 4.51 | 6.42 | 7.19 |
Heating capacity B-5/W45 | KW | 1.80 | 2.55 | 2.87 |
COP B-5/W45 | | 2.50 | 2.51 | 2.51 |
Heating capacity W15/W35 (6) | KW | 7.04 | 10.01 | 11.22 |
Heating power input | KW | 1.36 | 1.92 | 2.16 |
COP W15/W35 | | 5.19 | 5.21 | 5.20 |
Cooling capacity W30/W7 (7) | KW | 5.61 | 7.97 | 8.94 |
Cooling power input W30/W7 | KW | 1.36 | 1.92 | 2.16 |
EER W30/W7 | | 4.13 | 4.15 | 4.14 |
Rated current | A | 6.20 | 8.1 | 9.3 |
Max. water temperature | ℃ | 60 | 60 | 60 |
Rated water temperature | ℃ | 55 | 55 | 55 |
Water flow (Heating side) | m3/h | 1.00 | 1.55 | 1.76 |
Water flow (ground source side) | m3/h | 0.90 | 1.40 | 1.60 |
Water pressure drop | Kpa | 22.00 | 22 | 22 |
Noise | dB(A) | 40.00 | 40 | 40 |
Water connections | Inch | 3/4" | 3/4" | 3/4" |
Compressor | Brand | Hitachi | Hitachi | Sanyo |
Type | Rotary | Rotary | Scroll | |
Quantity | 1 | 1 | 1 | |
Power supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 |
Refrigerant | / | R410a | R410a | R410a |
Condenser | | Plate type | Plate type | Plate type |
Evaporator | | Plate type | Plate type | Plate type |
Circulation pump (Heating side) | / | Energy Class-A pump | Energy Class-A pump | Energy Class-A pump |
Water flow switch (Heating side) | | Paddle type | Paddle type | Paddle type |
Water flow switch (Ground source side) | | Paddle type | Paddle type | Paddle type |
Net weight | kg | 60.00 | 66 | 73 |
Gross weight | kg | 75.00 | 81 | 88 |
Net dimensions | mm | 550*540*740 | 550*540*740 | 550*540*740 |
Packing dimensions | mm | 610*600*870 | 610*600*870 | 610*600*870 |
