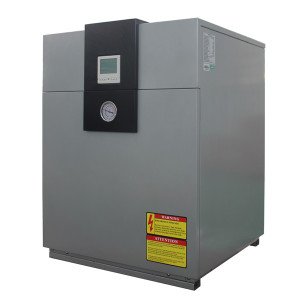

13KW, 17KW, 20KW Geothermal/ground source heat pumps

13KW, 17KW, 20KW Geothermal/ground source heat pumps

13KW, 17KW, 20KW Geothermal/ground source heat pumps
13KW, 17KW, 20KW Geothermal/ground source heat pumps13KW, 17KW, 20KW Geothermal/ground source heat pumps13KW, 17KW, 20KW Geothermal/ground source heat pumps
CategoriesGeothermal Heat Pump
AlbumView larger image
BrandSuoher/OEM
ModelSHWW-13/17/20FM3
FOB portRongqi, Shunde
Terms of PaymentL/C, T/T
Update Time2019-03-26
Detail Information

1.    Newdesign, new visible screws outside.

2.    Heatingonly or heating/cooling.

3.    Allcasing panels are easy to remove for maintenance.

4.    Lownoise design, the compressor system is isolated from bottom plate with softrubber mounts.

5.    Noisejacket for compressor.

6.    Pinvalve is easily accessible for maintenance.

7.    Withwater flow switch.

8.    Withdrain pipes for heat exchangers.

9.    Tube-in-shellheat exchangers for heating only units and plate heat exchangers forheating/cooling units.

10.  Canwork with room thermostat, master controller, or smart grill signal.

11.  Built-inEnergy Class A circulating pump as standard.

12.  Weoffer OEM/ODM service.

Model

SHWW-13FM3

SHWW-17FM3

SHWW-20FM3

Heating capacity W10/W35 (1)

KW

12.20

15.50

18.50

Heating power input W10/W35

KW

2.61

3.32

3.96

COP W10/W35



4.67

4.67

4.67

Heating capacity W10/W55 (2)

KW

10.86

13.80

16.47

Heating power input W10/W55

KW

3.45

4.38

5.23

COP W10/W55



3.15

3.15

3.15

Heating capacity B0/W35 (3)

KW

11.35

14.42

17.21

Heating power input B0/W35

KW

2.64

3.35

4.00

COP B0/W35



4.30

4.30

4.30

Heating capacity B0/W55 (4)

KW

9.52

12.09

14.43

Heating power input B0/W55

KW

3.78

4.81

5.74

COP B0/W55



2.51

2.51

2.51

Heating capacity B-5/W45 (5)

KW

8.60

10.93

13.04

Heating capacity B-5/W45

KW

3.43

4.37

5.21

COP B-5/W45



2.50

2.50

2.50

Heating capacity W15/W35 (6)

KW

13.42

17.05

20.35

Heating power input

KW

2.58

3.29

3.92

COP W15/W35



5.19

5.19

5.19

Cooling capacity W30/W7 (7)

KW

10.69

13.58

16.21

Cooling power input W30/W7

KW

2.58

3.29

3.92

EER W30/W7



4.14

4.13

4.13

Rated current

A

11.8

6.5

7.6

Max. water temperature

60

60

60

Rated water temperature

55

55

55

Water flow (Heating side)

m3/h

2.24

3

3

Water flow (ground source side)

m3/h

1.80

2.34

2.7

Water pressure drop

Kpa

24

28

30

Noise

dB(A)

41

41

42

Water connections

Inch

1''

1''

1''

Compressor

Brand

Sanyo

Sanyo

Sanyo

Type

Scroll

Scroll

Scroll

Quantity

1

1

1

Power supply

V/Ph/Hz

220/1/50

380/3/50

380/3/50

Refrigerant

/

R410a

R410a

R410a

Condenser



Plate type

Plate type

Plate type

Evaporator



Plate type

Plate type

Plate type

Circulation pump (Heating side)

/

Energy Class-A pump

yes

yes

Water flow switch (Heating side)



Paddle type

Paddle type

Paddle type

Water flow switch (Ground source side)



Paddle type

Paddle type

Paddle type

Net weight

kg

90

105

130

Gross weight

kg

105

120

145

Net dimensions

mm

550*540*740

550*540*740

600*590*840

Packing dimensions

mm

610*600*870

610*600*870

660*650*970
