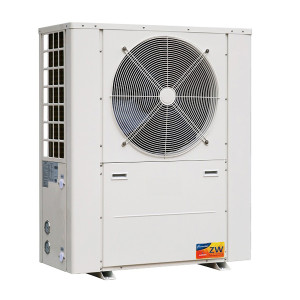

10kW 230V EVI monobloc heat pump
| Categories | EVI Heat Pump |
|---|---|
| Brand | Suoher/OEM |
| Model | SHAW-10EVIM1 |
| FOB port | Rongqi, Shunde |
| Terms of Payment | L/C, T/T |
| Update Time | 2021-11-29 |
Product Detail
1. Heating and hot water modes.
2. Heating capacity 10kw, 12kw, 16kw, 18kw, 25kw, 34kw.
3. Work at down to -25DegC.
4. Electronic expansion valve for main circuit and EVI circuit.
5. Receives ON/OFF signal from thermostat, master controller, smart grilletc to save more energy.
6. Heating curves for more comfortable temperature and more energy-saving.
7. Monobloc type.
8. Copeland scroll EVI compressor.
9. With compressor heater.
10. With bottom plate heater.
11. With 3kw back-up electric heater.
12. With energy class A circulating pump.
13. With control for 3-way valve to switch between heating circuit and hotwater circuit.
14. With water flow switch.
15. We offer OEM service including back-up heater, circulating pump, casingdesign, painting color etc.
Model | SHAW-11EVIM1 | SHAW-11EVIM3 | SHAW-16EVIM3 | SHAW-18EVIM3 | SHAW-25EVIM3 | |
Voltage | V/Hz | 220~240/50/1 | 380~415/50/3 | 220~240/50/1 | 380~415/50/3 | |
Heating capicity 20°C | KW | 11 | 11 | 18.5 | 20 | 28 |
Input power 20°C | KW | 2.61 | 2.59 | 4.37 | 4.69 | 6.57 |
Current 20°C | A | 12.5 | 5.2 | 20.9 | 9.4 | 13.2 |
COP 20°C | | 4.22 | 4.25 | 4.23 | 4.26 | 4.26 |
Hot water supply | L/H | 236 | 236 | 398 | 430 | 602 |
Heating capacity * | KW | 10.2 | 11.2 | 15.5 | 17.9 | 24.6 |
Heating power input * | KW | 2.30 | 2.51 | 3.48 | 4.03 | 5.69 |
COP* | / | 4.43 | 4.46 | 4.45 | 4.44 | 4.32 |
Heating capacity ** | KW | 7.7 | 8.8 | 11.9 | 13.4 | 18.6 |
Heating power input ** | KW | 2.40 | 2.70 | 3.69 | 4.18 | 5.83 |
COP** | / | 3.21 | 3.26 | 3.22 | 3.21 | 3.19 |
Heating capacity *** | KW | 5.9 | 6.7 | 8.9 | 10.2 | 13.1 |
Heating power input *** | KW | 2.40 | 2.70 | 3.60 | 4.16 | 5.61 |
COP*** | / | 2.46 | 2.48 | 2.47 | 2.45 | 2.34 |
Heating capacity **** | KW | 4.6 | 4.6 | 7.8 | 8.4 | 11.8 |
Heating power input **** | KW | 2.30 | 2.60 | 3.55 | 4.11 | 5.59 |
COP**** | / | 2.00 | 1.77 | 2.20 | 2.04 | 2.11 |
Rated/Max water temp | 55~60 °C | |||||
Water flow | m3/H | 2.4 | 2.4 | 4.0 | 4.3 | 6.0 |
Water pressure drop | kPa | ≤40 | ≤40 | ≤50 | ≤50 | ≤65 |
Refrigerant | | R407C | ||||
Compressor (Copeland EVI Scroll) | ZW34KSE*1 | ZW34KSE*1 | ZW52KSE*1 | ZW61KSE*1 | ZW79KSE*1 | |
Condenser | High efficient tube-in-shell heat exchanger | |||||
Evaporator | | Blue Finned heat exchanger | ||||
4-way valve | | SanHua Brand 4-way valve | ||||
Throttle unit | | Sanhua electronic expansion valve | ||||
Ambient temperature | | （-25℃ -- 43℃） | ||||
Water pipe size | | DN25 | DN25 | DN25 | DN25 | DN25 |
Noise | | ≤52 | ≤52 | ≤55 | ≤55 | ≤58 |
Dimension | mm | 830*490*1160 | 830*490*1160 | 1300*450*1460 | 1300*450*1460 | 1300*450*1460 |
Weight (N./W.) | kg | 95/100 | 95/100 | 145/155 | 145/155 | 155/165 |
1. Unit working temperature : -25℃ to 43℃ | ||||||
