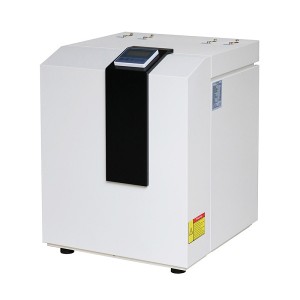

New 6KW, 9KW, 10KW Geothermal/ground source heat pumps heating and hot water modes
New 6KW, 9KW, 10KW Geothermal/ground source heat pumps heating and hot water modes
| Categories | Geothermal Heat Pump |
|---|---|
| Brand | Suoher/OEM |
| Model | SHWW-6/9/10FM1 |
| FOB port | Rongqi, Shunde |
| Terms of Payment | L/C, T/T |
| Update Time | 2021-11-29 |
1. New design, new visible screws outside.
2. Heating+hot water or heating/cooling according to customer's request.
3. All casing panels are easy to remove for maintenance.
4. Low noise design, the compressor system is isolated from bottom plate with softrubber mounts.
5. Noise jacket for compressor.
6. Pin valve is easily accessible for maintenance.
7. With water flow switch.
8. With drain pipes for heat exchangers.
9. Tube-in-shell heat exchangers for heating only units and plate heat exchangers forheating/cooling units.
10. Can work with room thermostat, master controller, or smart grill signal.
11. Built-in Energy Class A circulating pump as standard.
12. We offer OEM/ODM service.
Model | SHWW-6FM1 | SHWW-9FM1 | SHWW-10FM1 | |
Heating capacity W10/W35 (1) | KW | 6.40 | 9.10 | 10.20 |
Heating power input W10/W35 | KW | 1.37 | 1.94 | 2.18 |
COP W10/W35 | | 4.67 | 4.69 | 4.68 |
Heating capacity W10/W55 (2) | KW | 5.70 | 8.10 | 9.08 |
Heating power input W10/W55 | KW | 1.81 | 2.56 | 2.88 |
COP W10/W55 | | 3.15 | 3.16 | 3.15 |
Heating capacity B0/W35 (3) | KW | 5.95 | 8.46 | 9.49 |
Heating power input B0/W35 | KW | 1.38 | 1.96 | 2.20 |
COP B0/W35 | | 4.30 | 4.32 | 4.31 |
Heating capacity B0/W55 (4) | KW | 4.99 | 7.10 | 7.96 |
Heating power input B0/W55 | KW | 1.99 | 2.81 | 3.16 |
COP B0/W55 | | 2.51 | 2.52 | 2.52 |
Heating capacity B-5/W45 (5) | KW | 4.51 | 6.42 | 7.19 |
Heating capacity B-5/W45 | KW | 1.80 | 2.55 | 2.87 |
COP B-5/W45 | | 2.50 | 2.51 | 2.51 |
Heating capacity W15/W35 (6) | KW | 7.04 | 10.01 | 11.22 |
Heating power input | KW | 1.36 | 1.92 | 2.16 |
COP W15/W35 | | 5.19 | 5.21 | 5.20 |
Cooling capacity W30/W7 (7) | KW | 5.61 | 7.97 | 8.94 |
Cooling power input W30/W7 | KW | 1.36 | 1.92 | 2.16 |
EER W30/W7 | | 4.13 | 4.15 | 4.14 |
Rated current | A | 6.20 | 8.1 | 9.3 |
Max. water temperature | ℃ | 60 | 60 | 60 |
Rated water temperature | ℃ | 55 | 55 | 55 |
Water flow (Heating side) | m3/h | 1.00 | 1.55 | 1.76 |
Water flow (ground source side) | m3/h | 0.90 | 1.40 | 1.60 |
Water pressure drop | Kpa | 22.00 | 22 | 22 |
Noise | dB(A) | 40.00 | 40 | 40 |
Water connections | Inch | 3/4" | 3/4" | 3/4" |
Compressor | Brand | Hitachi | Hitachi | Sanyo |
Type | Rotary | Rotary | Scroll | |
Quantity | 1 | 1 | 1 | |
Power supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 |
Refrigerant | / | R410a | R410a | R410a |
Condenser | | Plate type | Plate type | Plate type |
Evaporator | | Plate type | Plate type | Plate type |
Circulation pump (Heating side) | / | Energy Class-A pump | Energy Class-A pump | Energy Class-A pump |
Water flow switch (Heating side) | | Paddle type | Paddle type | Paddle type |
Water flow switch (Ground source side) | | Paddle type | Paddle type | Paddle type |
Net weight | kg | 60.00 | 66 | 73 |
Gross weight | kg | 75.00 | 81 | 88 |
Net dimensions | mm | 550*540*740 | 550*540*740 | 550*540*740 |
Packing dimensions | mm | 610*600*870 | 610*600*870 | 610*600*870 |
