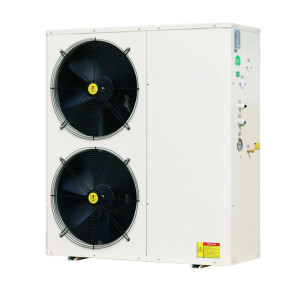

34kW 380V EVI monobloc heat pump

34kW 380V EVI monobloc heat pump

34kW 380V EVI monobloc heat pump
CategoriesEVI Heat Pump
AlbumView larger image
BrandSuoher/OEM
ModelSHAW-34EMA3
FOB portRongqi, Shunde
Terms of PaymentL/C, T/T
Update Time2019-09-15
Detail Information

Product Detail


1.      Heating and hot water modes.

2.      Heating capacity 10kw, 12kw, 16kw, 18kw, 25kw, 34kw.

3.      Work at down to -25DegC.

4.      Electronic expansion valve for main circuit and EVI circuit.

5.      Receives ON/OFF signal from thermostat, master controller, smart grilletc to save more energy.

6.      Heating curves for more comfortable temperature and more energy-saving.

7.      Monobloc type.

8.      Copeland scroll EVI compressor.

9.      With compressor heater.

10.  With bottom plate heater.

11.  OEM with 3kw back-up electric heater.

12.  With energy class A circulating pump.

13.  With control for 3-way valve to switch between heating circuit and hotwater circuit.

14.  With water flow switch.

15.  We offer OEM service including back-up heater, circulating pump, casingdesign, painting color etc.

Model

SHAW-11EM1A

SHAW-11EM3A

SHAW-16EM1A

SHAW-18EM3A

SHAW-25EM3A

SHAW-34EM3A

Power supply

V/ph/Hz

220~240/1/50

380~415/3/50

220~240/1/50

380~415/3/50

380~415/3/50

380~415/3/50

Heating capacity (1)

KW

11.2

11.2

15.5

17.9

24.6

34.5

Heating power input  (1)

KW

2.51

2.51

3.48

4.03

5.69

7.99

COP (1)



4.46

4.46

4.45

4.44

4.32

4.32

Heating capacity (2)

KW

10.5

10.5

14.70

16.80

23.10

32.40

Heating power input (2)

KW

2.63

2.63

3.68

4.20

5.89

8.26

COP (2)



4

4

4.00

4.00

3.92

3.92

Heating capacity (3)

KW

8.6

8.6

11.80

13.50

18.50

25.90

Heating power input (3)

KW

2.46

2.46

3.34

3.82

5.28

7.40

COP (3)



3.5

3.5

3.53

3.53

3.50

3.50

Heating capacity (4)

KW

8

8

10.20

11.40

15.80

21.60

Heating power input (4)

KW

2.76

2.76

3.29

3.80

5.27

7.20

COP (4)



2.9

2.9

3.10

3.00

3.00

3.00

Heating capacity (5)

KW

5.9

6.7

8.9

10.2

13.1

18.4

Heating power input (5)

KW

2.40

2.70

3.60

4.16

5.61

7.91

COP (5)



2.46

2.48

2.47

2.45

2.34

2.33

Heating Start Current

A

46

26

62

40

62

88

Heating Running Current

A

11

6.6

15

9.7

15

21

Workable Ambient Temp.

-25~43

-25~43

-25~43

-25~43

-25~43

-25~43

Rated/Max Water Outlet Temp.

55/60

55/60

55/60

55/60

55/60

55/60

Compressor



Copeland EVI

Copeland EVI

Copeland EVI

Copeland EVI

Copeland EVI

Copeland EVI

Compressor Quantity

pc

1

1

1

1

1

1

Refrigerant



R407C

R407C

R407C

R407C

R407C

R407C

EVI circuit heat exchanger



Plate type

Plate type

Plate type

Plate type

Plate type

Plate type

Main circuit throttling device



EEV

EEV

EEV

EEV

EEV

EEV

EVI circuit throtting device



EEV

EEV

EEV

EEV

EEV

EEV

Condenser



tube-in-shell

tube-in-shell

tube-in-shell

tube-in-shell

tube-in-shell

tube-in-shell

Water flow volume

m3/h

2.00

2.00

2.40

2.90

4.30

5.6

Water pressure drop

Kpa

10

10

10

10

15

17

Water connection

Inch

1"F

1"F

1"F

1"F

1"F

1.5"F

Built-in circulation pump



Yes (efficiency class A)

Yes (efficiency class A)

Yes (efficiency class A)

Yes (efficiency class A)

Yes (efficiency class A)

Yes (efficiency class A)

Built-in water flow switch



paddle type

paddle type

paddle type

paddle type

paddle type

paddle type

Fan quantity



1

1

2

2

2

2

Noise level

dB(A)

52

52

55

55

58

58

Net dimension(W*D*H)

mm

1110*460*850

1110*460*850

1110*460*1250

1110*460*1250

1110*460*1655

1110*460*1655

Net weight

kg

110

110

143

150

240

265

Test Condition:
(1) A7/W35: Ambient Temp. DB/WB 7/6
, water inlet/outlet Temp. 30/35.
(2) A7/W45: Ambient Temp. DB/WB 7/6
, water inlet/outlet Temp. 40/45.
(3) A2/W35: Ambient Temp. DB/WB 2/1
, water inlet/outlet Temp. 30/35.
(4) A-7/W35: Ambient Temp. DB/WB -7/-8
, water inlet/outlet Temp. 30/35.
(5) A-15/W35: Ambient Temp. DB/WB -15/-
, water inlet/outlet Temp. -/35.
